General Applications

American Sound Masking ASM-1042 Soundmasking Conditioner is a soundmasking generater, low-pass filter, and power amplifier in an easy to use neutral toned enclosure. The ASM-1042 is designed for use in soundmasking applications that require centralized control, yet space and/or economy are a consideration. The unit features a simple and clearly labeled controls for ease of use. It offers many of the most popular features usually found on larger centralized soundmasking systems, taking the place of various rack-type components.

The ASM-1042 is effective in supplying dedicated soundmasking for up to 8,000 sq.ft. zone.
This unit is for Sound Masking only. To include Paging, Emergency Evacuation Paging, Music and/or a Miccrophone, see the ASM-1092 viewed below.
Soundmasking generator, low pass filter, and amplifier – all in one compact housing
* Internal digital White Noise soundmasking signal
* 70-Volt distributed output
* Powerful 25-Watt Amplifier
* Low pass filter allows tuning of the soundmasking spectrum
* Accessible 3A fuse protection
* Barrier Post and RCA (phono) plug output jacks
* Can power zones up to 6,000sq.ft.
* Rated for 100% duty cycle commercial usage
* Easy to use controls

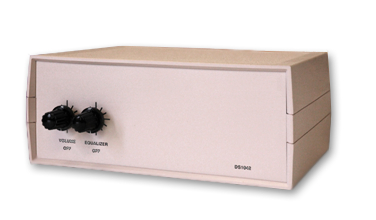

ASM-1042 Sound Masking Generator
Our Sound Masking Systems
ASM-1092 Sound Masking Generator
* Soundmasking generator, mixer, and amplifier – all in one compact housing
* Includes Paging, Evacuation Paging, Music, and Microphone capability.
* Internal analog Gaussian random soundmasking signal
* Switchable Pink/ White Noise source
* Built-in mixer allows layering of soundmasking with music and paging
* Variety of Line and Mic level inputs
* 70-Volt or 8-Ohm outputs
* Powerful 40-Watt Amplifier
* Low pass filter allows tuning of the soundmasking spectrum
* Rated for commercial or security usage
* Designed for 100% duty cycle
General Applications

American Sound Masking’s ASM-1092 Soundmasking Generator/ Mixer/ Amplifier is designed for use in soundmasking applications that require the flexibility of many features, yet space and/or economy are a consideration. The unit features a clearly labeled control panel for ease of use. It offers many of the most popular features usually found on larger centralized soundmasking systems, taking the place of various rack-type components. The ASM-1092 is effective when DIAM and DCID requirements for SCIF need to be met.
This unit Includes Paging, Emergency Evacuation Paging, Music, Microphone Capability.
ASM-3002 Sound Masking, Paging and Music Processors
General Applications

The ASM-3002 contains four independent sound masking generators, each having high pass, low pass and one-third octave band equalization.  Each balanced input has individual equalization and adjustable compression. A matrix mixer routes any blend of
external inputs and internal sound masking to any of the balanced outputs.

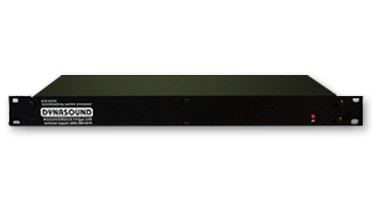

ASM-3008 Sound Masking, Paging and Music Processors
General Applications

Each DS3002 and DS3008 contains four independent sound masking generators, each having high pass, low pass and one-third octave band equalization.  Each balanced input has individual equalization and adjustable compression. A matrix mixer routes any blend of external inputs and internal sound masking to any of the balanced outputs

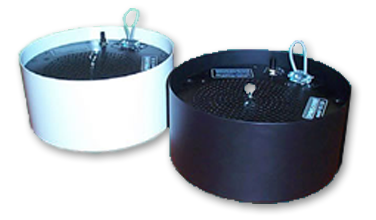

ASM-1338 Sound Masking, Pendant Masker
Features

* Clean, streamlined appearance
* Compact enclosure
* Internal 70.7 v. Transformer
* Rotary volume control
* Single point suspension
* ETL listed to conform to UL1480
* ETL listed certified to CSA C22.2 60005
* Note: This product requires the appropriate masking generator/amplifier to power it.
               Please see Model ASM-1042 or ASM-1092 listed above.
General Applications

American Sound Masking’s ASM-1338 soundmasker is designed for quick and easy installation into open structure and closed plenum architecture. When suspended, the loudspeaker assembly offers a clean appearance with no exposed controls or wiring from below. The ASM-1338 provides uniform dispersion and is well suited for sound masking, paging and music signals. The ASM-1338 is ETL listed for use in plenum ceilings, and under raised floor plenums.
* When used in open ceilings, this speaker can be spray painted to match any decorating scheme.
Click to view ASM-1042 technical specs
American Sound Masking, LLC. and Florida Sound Masking, Inc. © 2008-2017 All rights reserved.
ASM-RMP-8 Zone Control Panel
FEATURES

    . Standard 19” rack mount face plate, available in 2U rack space height (3.5”)
    .Eleven-stage detent attenuation control (from 0 to 10) in 1.5 dBA increments
    .Each attenuator rated at 100 watts
    . Available with on to eight attenuators per rack mount panel



DESCRIPTION

American Sound Masking’s ASM-RMP-8 rack mounted attenuator panel is designed for use in large 70.7 volt centralized sound masking systems. Each attenuator is rated at 100 watts. Attenuator increments are 1.5 dB for each 1-10 position. Connections are made with pluggable rear mounted connectors.
